Xinfrared InfiRay T2S Plus Thermal Camera Android, iOS Win and Linux Type-C Thermal Camera

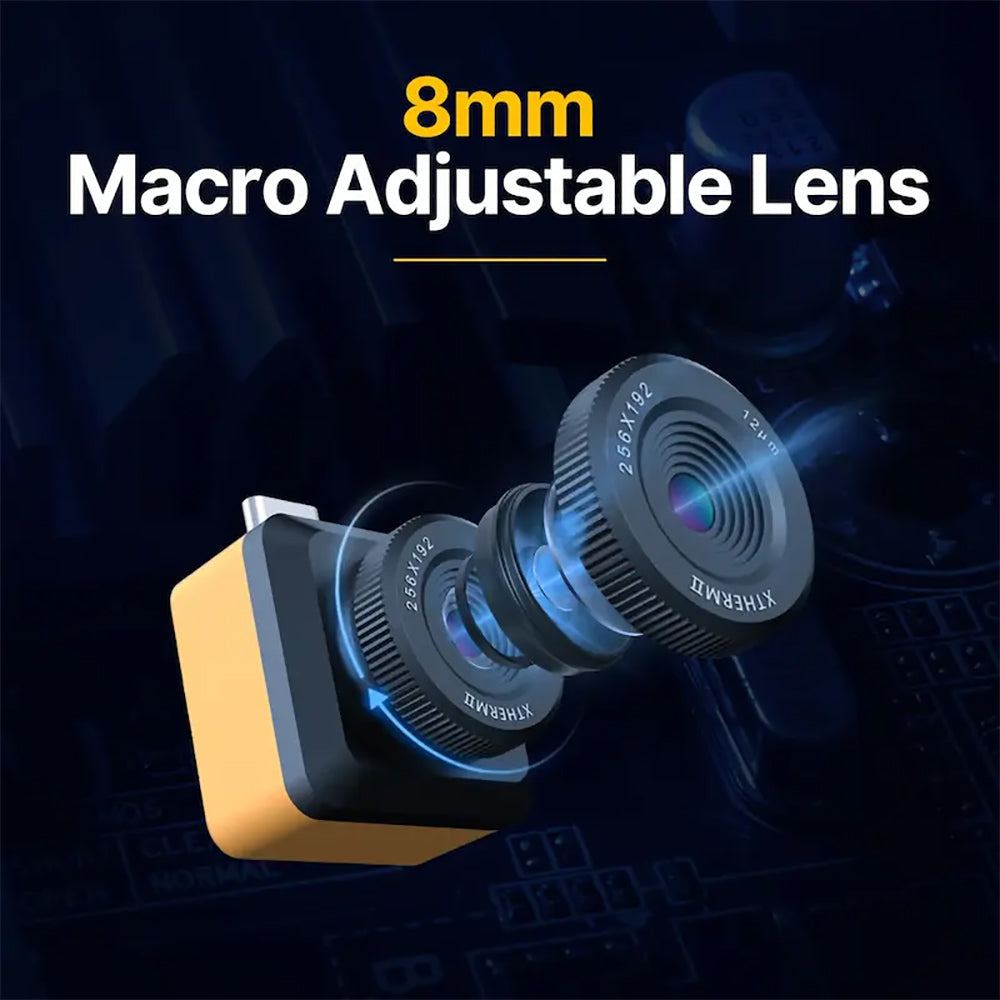

The compact T2S Plus Thermal Camera features an 8mm macro lens for quick identification, aiming and focusing. This built-in lens is ideal for maintaining circuit boards and microcircuits, providing the clearest images at a close distance of 8mm.

*If the item is out of stock, it will take about 1 to 2 months to be ordered. Please note that we cannot accept cancellations due to delivery dates.

Product Features

[Quick Identification]

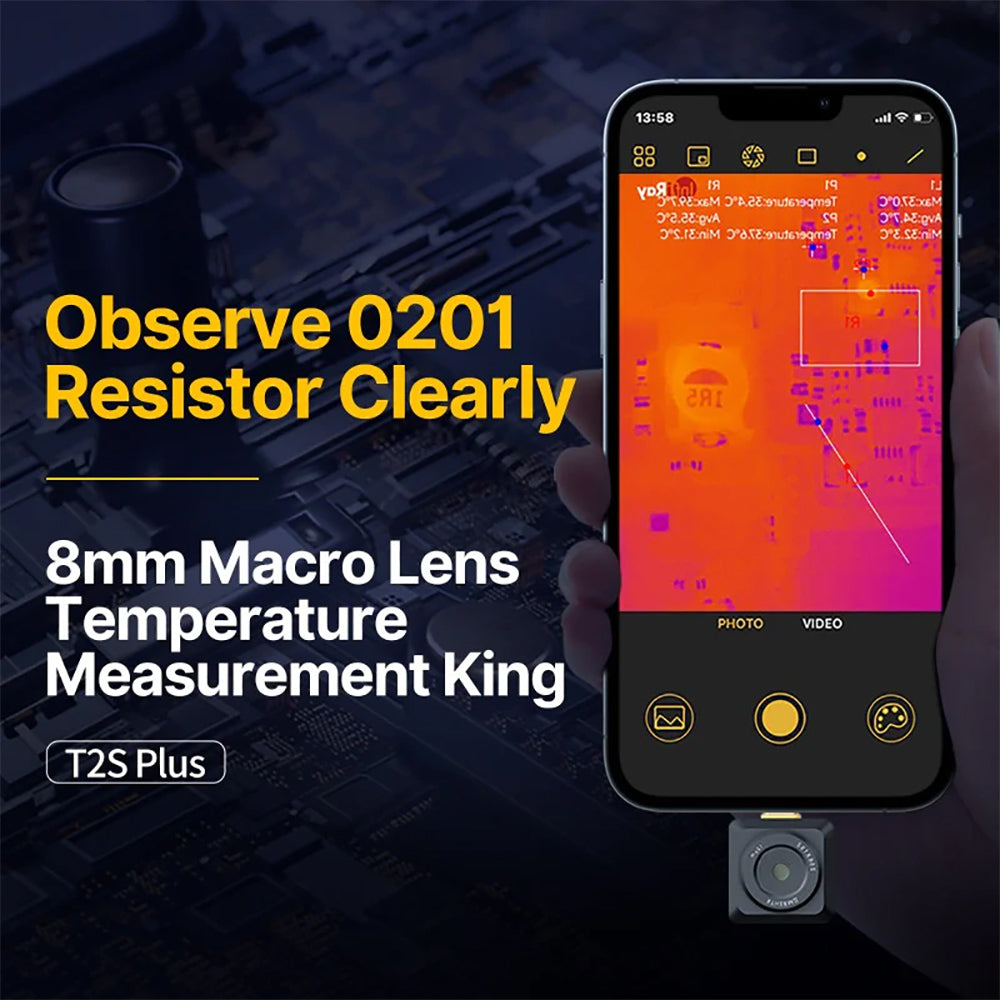

The compact T2S Plus imager features an 8mm macro lens for quick identification, aiming and focusing. This built-in lens is ideal for circuit board and microcircuit maintenance, allowing you to see millimeter resistors at a close distance of 8mm, providing the clearest images.

Excellent performance
With 256x192 IR resolution / 49,152 pixels and a fast 25Hz frame rate, the T2S Plus thermographic imager provides high-resolution images with full-screen temperature measurements (max, min, center spot) to help visualize spots indicating electrical faults, mechanical failures, water leaks, and more.

[High precision]

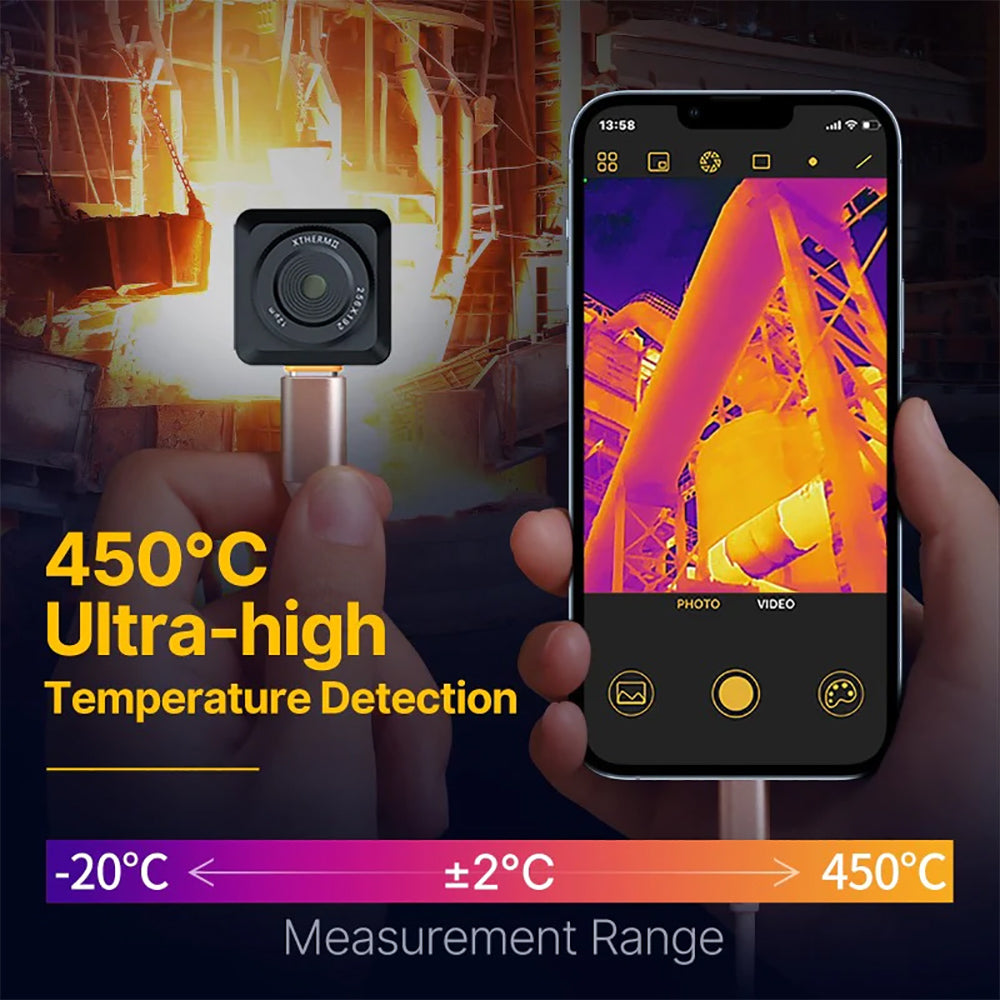

With measurements up to 450°C (842°F) and an accuracy of ±2°C or ±2%, you can quickly confirm if your target is overheating and accurately find hidden heat-related problems. Ideal for home inspections, missing insulation, underfloor heating, water pipes, facility maintenance, HVAC troubleshooting, and professional inspection of electrical, circuit boards and mechanical systems.

[Low consumption]
Once you connect the T2S Plus imager to your smartphone, the electronics will power this thermal camera. With a power consumption of just 0.35W, the imager can run for 3000-5000 hours on a 3-5mAh phone.

【package】

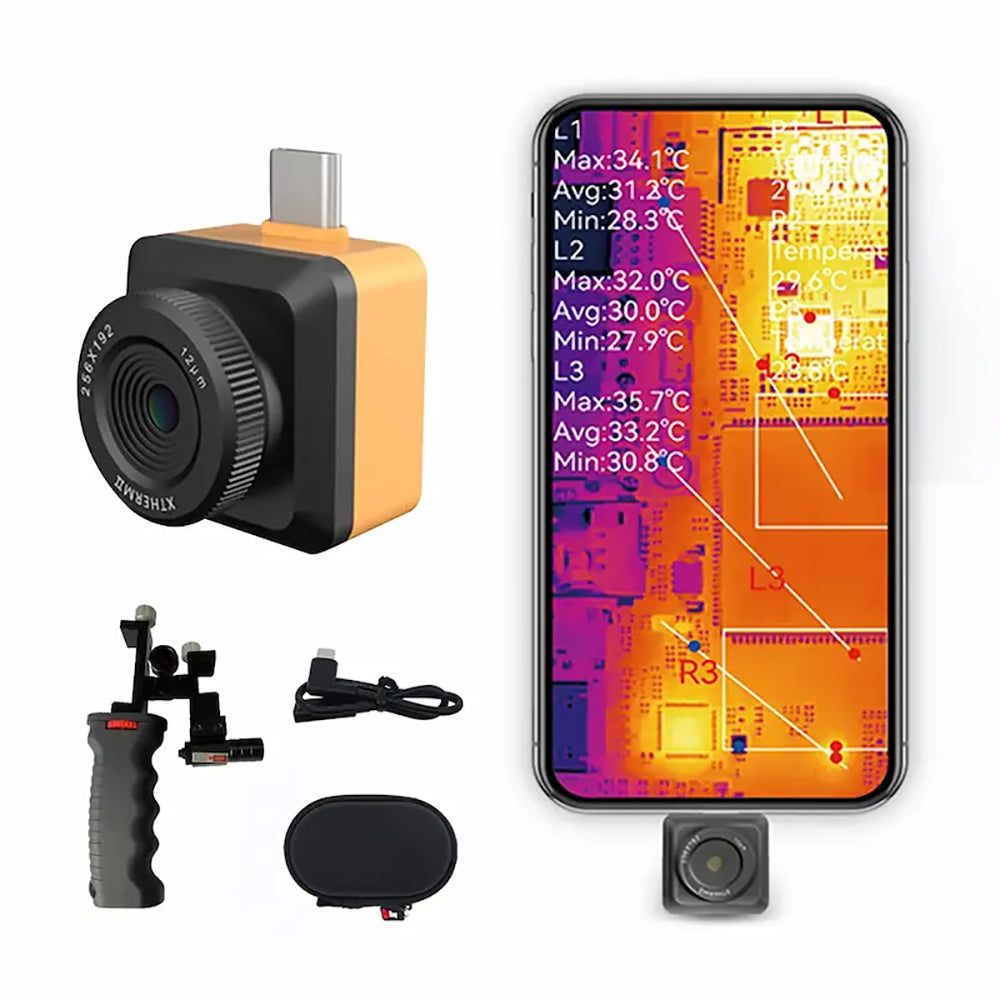

Xinfrared T2S Plus(latest model) and accessories(English instruction manual, Type-c cable, T2S Plus handle, protective case). T2S Plus warranty: 2 years. Download the app: Xtherm. If you need the SDK file, please contact us.

Main Specifications

Product model: T2S Plus Macro lens: 8mm
Resolution: 256×192
Pixel pitch: 12μm
FOV: 44.9° x 33.4°
Image frame rate: 25 Hz
NETD: ≤60mK@25°C, F#1.0
MRTD: ≤500mK@25°C, F#1.0
Operating temperature: -20°C to +50°C
Temperature measurement range: -20°C to +450°C
Measurement accuracy: ±2°C or ±2% of the measurement range (whichever is greater)
Correction: Manual/Auto Power consumption: <350mW
Weight: <18g Dimensions: 26*26*24.2mm Supported OS: Android, Harmony OS
Image Enhancement: Digital Detail Enhancement Image Correction: Manual Palette: White Hot/Black Hot/Multi Palette
Secondary Development：SDK available
Measurement statistics: Max/Min/Center point temperature display, and point/line/area measurement Temperature statistics and analysis Video storage: Photo and video storage App update: Online update (App name: Exarm)
